FOR HIRE

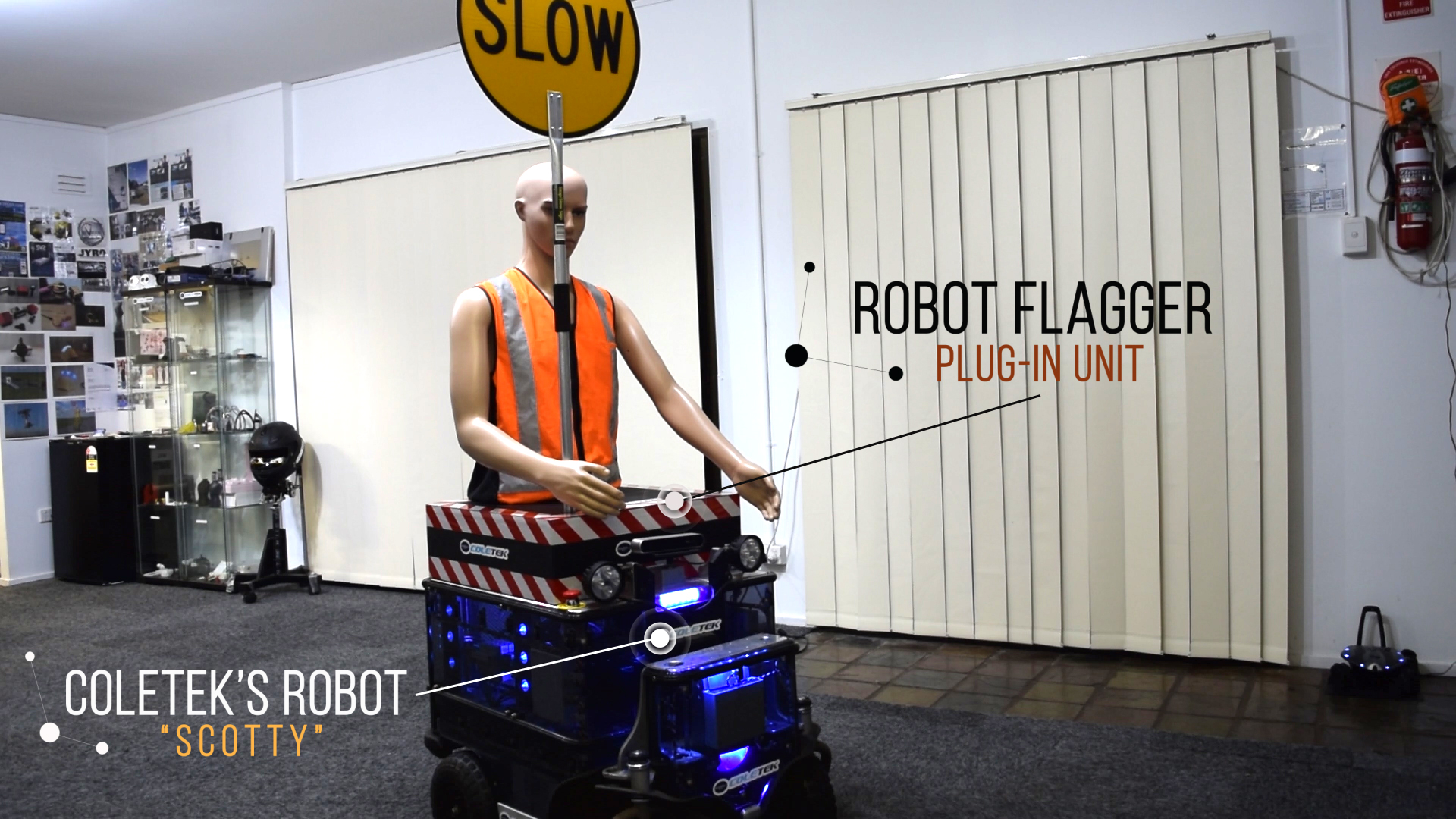

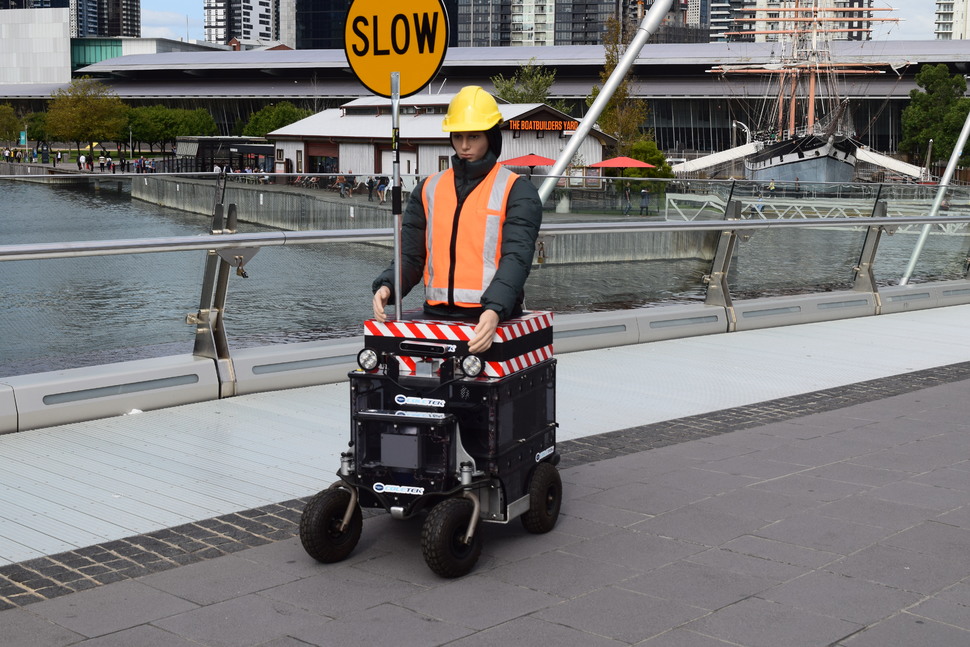

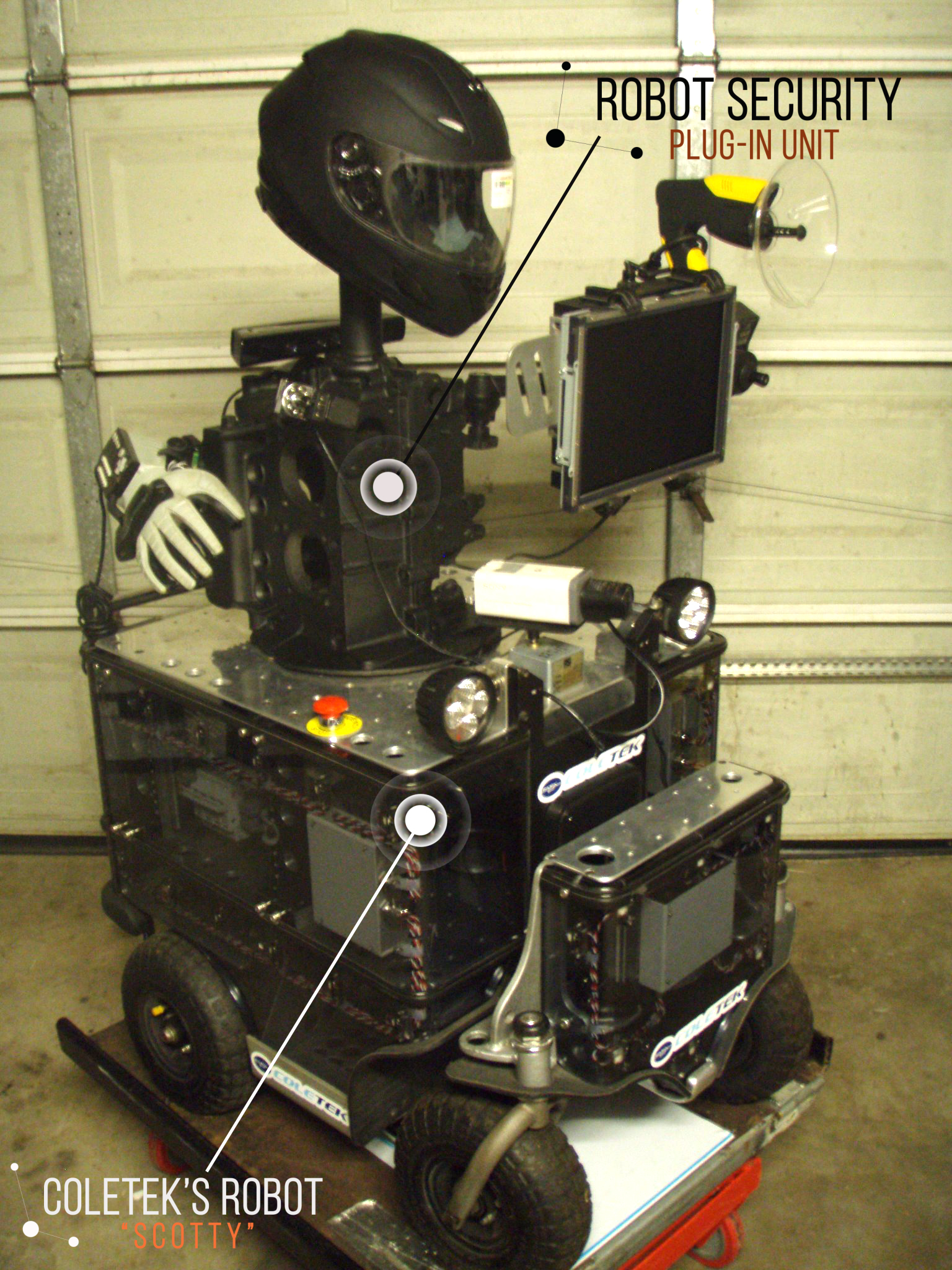

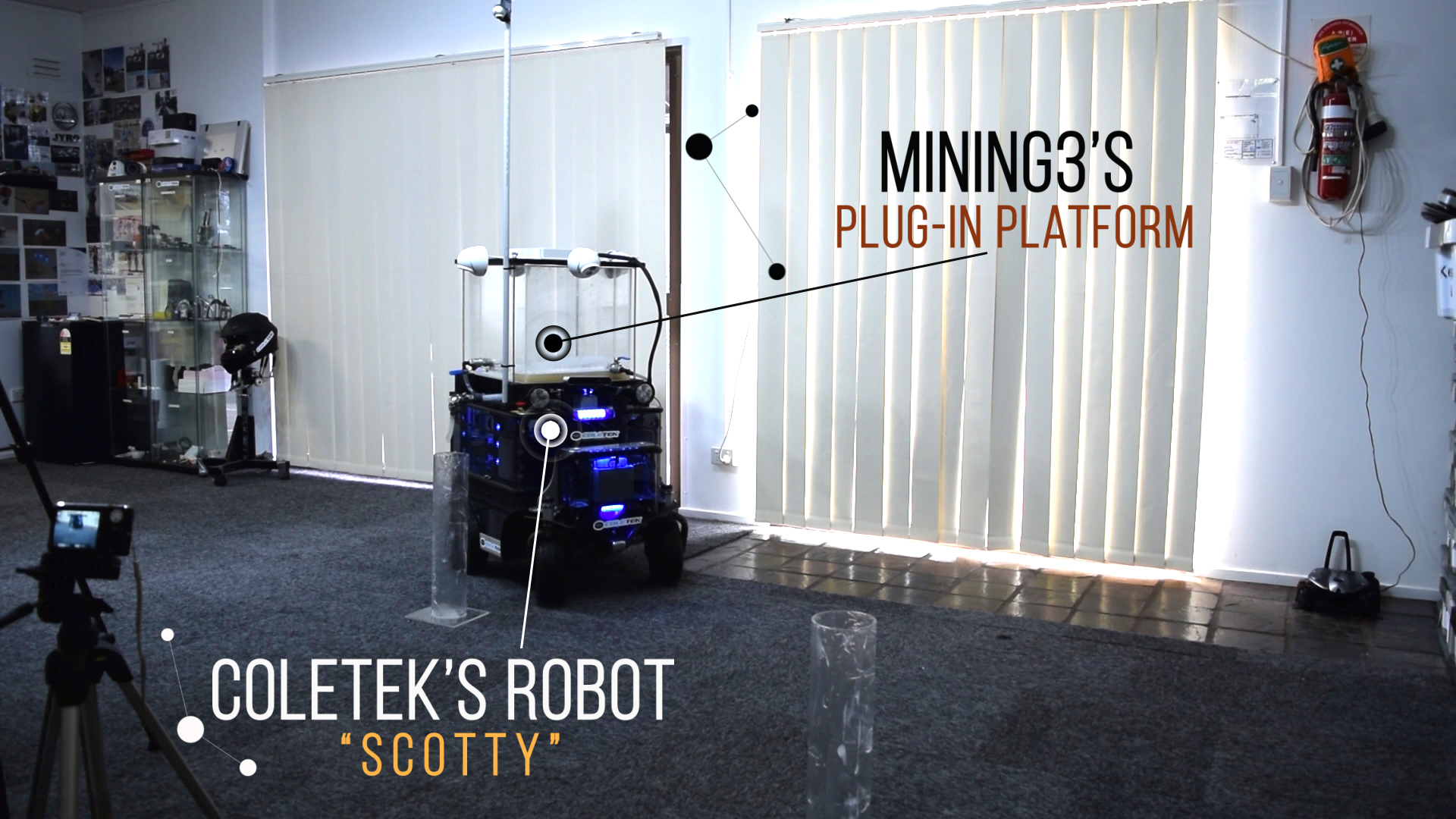

The mobile robot (called "Scotty") has been built by COLETEK for teleoperation and autonomous mobile robotics research and development, for proof of concept purposes. Scotty is avaiable for hourly hire (minimum 3 hours) for our clients to use. We can provide R&D services to fit any custom equipment you may need to test your concept (aka Scotty Robot Plugin). We also use Scotty for internal R&D use. Scotty fits the bill for rapid prototyping any ground based teleoperation, semi-autonomous or fully autonomous mobile robot solutions one may need. Once the proof of concept is completed, one can redesign a new robot based on lessons learned, to optimize its physical size, power consumption and cost; while ensuring it meets the objectives for its target environment (e.g. underground or an unearthly surfaces).

This R&D can then be applied to many applications such as: military, home land security, space exploration, earthworks trucks, agriculture, mining, traffic control, road construction and gardening.

  • Joystick/Monitor Teleoperation - Included for hire
  • Outdoor/GPS way point control - Optional R&D on top of hire
  • Indoor/Localisation way point control - Optional R&D on top of hire
  • Obstacle Detection - Optional R&D on top of hire
  • Localisation - Optional R&D on top of hire
  • SLAM - Optional R&D on top of hire

Performance

  • Energy: 5.7MJ/1.6kWh via 6x 12V 22Ah VRLA batteries
  • Speed: 9km/h
  • Weight: 145kg
  • Payload: 200kg (likely more, but not tested as yet)
  • Range: 200km
  • Incline: 12deg

Dimensions

  • Size: 1257(L) x 610(W) x 700(H) mm
  • Ground clearance: 114mm
  • Tyres diameter: 254mm
  • Turning radius: 1334mm

Actuators/Motors

  • Locomotion: 2x 24V Brushed DC Motors (3A normal, peak 15A)
  • Pan/Tilt Sensor Platform: 2x Stepper Motors

Sensors

  • 2x Wheel Encoders
  • 44x Sharp IRs (12x left, 12x right, 10x front, 10x back)
  • 4x Ultrasonic Sensors
  • 1x Stereolabs ZED Stereo Vision Camera
  • 1x Xsens MTi-7 IMU+GPS

Controllers

  • 1x Sabertooth 2x25 v2 Motor Controller
  • 1x 24V to 12V DC-DC Convertor
  • 1x 12V to 5V DC-DC Convertor

Communication

  • WiFi
  • Bluetooth

Computers

  • 1x NVIDIA Jetson TX1
